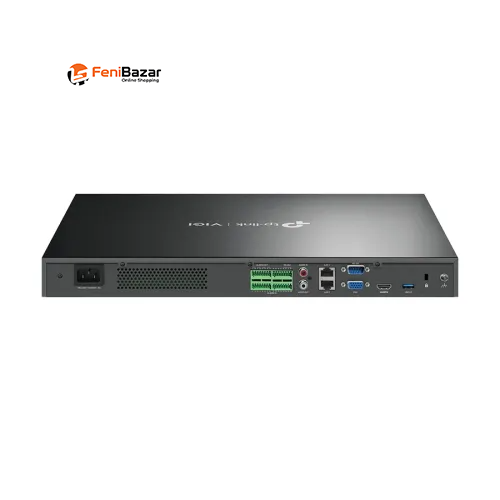

TP-Link VIGI NVR4032H 32-Channel Network Video Recorder NVR

TP-Link VIGI NVR4032H 32-Channel 8MP Network Video Recorder (NVR)

The TP-Link VIGI NVR4032H is a professional 32-channel Network Video Recorder (NVR) designed for advanced and large-scale IP surveillance systems. Supporting up to 32 IP cameras, 8MP recording, powerful video decoding, dual Gigabit Ethernet ports, and up to 40TB internal storage, it is suitable for commercial buildings, warehouses, factories, offices, educational institutions, retail spaces, and other demanding security environments.

32-Channel IP Camera Support

The VIGI NVR4032H supports up to 32 IP camera channels, allowing users to build a comprehensive multi-camera surveillance system. It supports recording resolutions up to 8MP, including 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.

Powerful Decoding Performance

The NVR provides strong decoding capability for smooth live viewing and playback:

• 16-channel 1080p at 30fps

• 8-channel 4MP at 30fps

• 4-channel 8MP at 30fps

It also supports multi-screen layouts of 1/4/6/8/9/16/25/32/36, giving users flexible monitoring options for large surveillance deployments.

H.265+ Video Compression

The TP-Link VIGI NVR4032H supports H.265+, H.265, H.264+, and H.264 video compression. Efficient compression helps reduce storage requirements and network bandwidth while maintaining clear surveillance footage.

4K HDMI & VGA Output

The NVR features 1× HDMI and 1× VGA video output. HDMI supports resolutions up to 3840 × 2160 at 30Hz, enabling high-quality 4K display output. VGA supports resolutions up to 1920 × 1080 at 60Hz.

This makes the NVR suitable for dedicated monitoring displays and control-room surveillance setups.

Advanced Playback & Search

The VIGI NVR4032H supports 16-channel synchronous playback, allowing multiple recorded camera feeds to be reviewed simultaneously. Its search functions include motion and object search as well as scheduled recording search modes such as general, motion detection, alarm, combined motion/alarm, and intelligent search.

Large 40TB Storage Capacity

For long-term surveillance recording, the NVR provides 4 SATA ports with support for up to 40TB total internal HDD capacity. This large storage capacity makes it suitable for systems requiring extended video retention.

Dual Gigabit Ethernet Ports

The NVR includes 2× RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports, providing high-speed network connectivity for large-scale surveillance systems. It also supports remote monitoring through Android and iOS smartphones.

Two-Way Audio Support

The TP-Link VIGI NVR4032H supports two-way audio, enabling communication between the monitoring system and compatible connected devices. It includes 1× audio input and 1× audio output for audio connectivity.

USB & Auxiliary Connectivity

For peripheral devices and backup operations, the NVR includes:

• 2× USB 2.0 ports

• 1× USB 3.0 port

• 1× RS232 interface

• 1× HDMI

• 1× VGA

• 1× Audio In

• 1× Audio Out

Reliable Professional Design

The VIGI NVR4032H is designed for continuous surveillance operation. It operates within a temperature range of -10°C to +55°C and supports storage conditions from -40°C to 70°C. Its compact 440 × 330 × 44mm chassis and 4kg net weight make it suitable for professional surveillance environments.

Key Features

• 32-channel IP camera input

• Up to 8MP recording resolution

• 16-ch 1080p / 8-ch 4MP / 4-ch 8MP decoding at 30fps

• H.265+ / H.265 / H.264+ / H.264 compression

• 4K HDMI output up to 3840 × 2160 @ 30Hz

• VGA output up to 1920 × 1080 @ 60Hz

• 1/4/6/8/9/16/25/32/36 multi-screen display

• 16-channel synchronous playback

• Motion & object search

• Two-way audio support

• 2× Gigabit Ethernet ports

• Android & iOS remote access

• 4× SATA ports

• Up to 40TB internal HDD capacity

• 1× USB 3.0 & 2× USB 2.0

• RS232 interface

• 100–240V AC power supply

• -10°C to +55°C operating temperature

• 1-year manufacturing warranty

Buy TP-Link VIGI NVR4032H 32-Channel NVR in Bangladesh

The TP-Link VIGI NVR4032H 32-Channel Network Video Recorder is an excellent choice for large-scale surveillance systems that require high-resolution recording, multiple camera connections, powerful decoding, large storage capacity, and flexible monitoring options.

With 32-channel IP camera support, up to 8MP recording, 4K HDMI output, 16-channel synchronous playback, dual Gigabit Ethernet, two-way audio, and up to 40TB storage, the VIGI NVR4032H provides a scalable and reliable solution for professional security installations.

The TP-Link VIGI NVR4032H comes with a 1-year manufacturing warranty.
