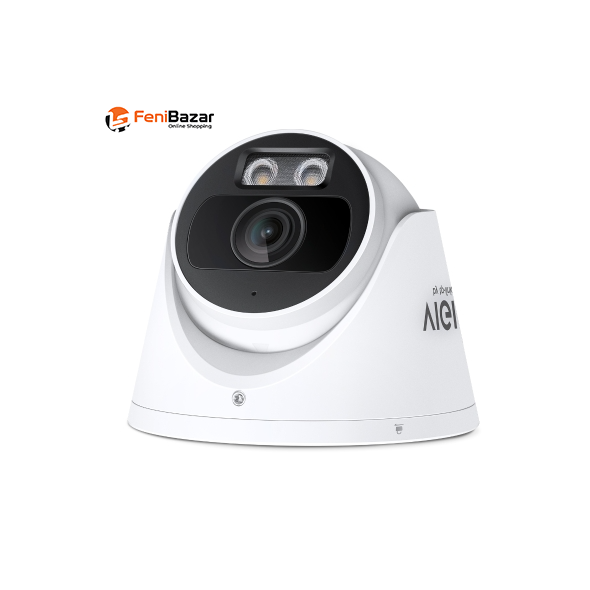

2MP Full HD PoE Network Camera with 30m IR & White Light
2.8/4mm F2.0 Fixed Lens, DWDR, 3D DNR & SmartIR
Human & Vehicle Detection, Built-in Mic, H.265+ & IP67/IK08
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Maximum Resolution | 1920 × 1080 |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.01 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8mm / 4mm |
| Aperture | F2.0 |
| Lens Mount | M12 |
| 2.8mm FOV | Horizontal 98.8°, Vertical 53.5°, Diagonal 117° |
| 4mm FOV | Horizontal 75.2°, Vertical 40.8°, Diagonal 88.3° |
| DORI Distance – 2.8mm | Detect 47m, Observe 19m, Recognize 9m, Identify 5m |
| DORI Distance – 4mm | Detect 59m, Observe 25m, Recognize 12m, Identify 6m |
| Angle Adjustment | |
| Pan | 0° to 360° |
| Tilt | 0° to 85° |
| Rotation | 0° to 360° |
| Illuminator | |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Integrated IR-White LED | 2 LEDs |
| IR Range | Up to 30m |
| White LED Range | Up to 30m |
| IR Wavelength | 850nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream Resolution | 1920 × 1080, 1280 × 960, 1280 × 720 |
| Main Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Sub-Stream Resolution | 848 × 480, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240 |
| Sub-Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| 90° Rotation | Frame rate up to 20fps |
| Bit Rate Control | CBR / VBR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Main Stream Bit Rate | 256Kbps to 4Mbps |
| Sub-Stream Bit Rate | 64Kbps to 512Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥52dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD | Yes |
| Audio | |
| Audio Communication | N/A |
| Audio Input | Built-in Microphone |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps, G.711 A-law |
| Network | |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| ONVIF Profile | S / T |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm and Event Management | |
| Smart Events | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, People Detection, Vehicle Detection |
| Basic Events | Motion Detection with Human & Vehicle Classification, Video Tampering Detection, Illegal Login |
| Alarm Linkage | FTP Upload, Push Notifications, Alarm Server, Email Alarm |
| Interfaces | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes, up to 5m recording radius |
| Built-in Speaker | N/A |
The VIGI 2MP Network Camera features a 1/3” Progressive Scan CMOS sensor with Full HD 1920 × 1080 resolution for clear and detailed surveillance footage. Its fixed focal lens is available in 2.8mm and 4mm options, providing different viewing angles for various monitoring requirements.
The camera comes with integrated IR and white LEDs, offering up to 30m illumination for low-light and nighttime monitoring. DWDR, 3D DNR, BLC, HLC, and SmartIR help improve image quality in challenging lighting conditions. The camera also supports motion detection with human and vehicle classification, intrusion detection, line-crossing detection, and region-based events.
For audio monitoring, the camera includes a built-in microphone with environmental noise filtering and 8KHz audio sampling. Network connectivity is provided through a 10/100M Ethernet port with PoE support, while ONVIF Profile S/T allows compatibility with supported surveillance systems.
With IP67 waterproof and IK08 vandal-resistant protection, a metal body, and an operating temperature range of -30°C to 60°C, the camera is designed for reliable surveillance in demanding environments. It can be managed through the VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, and VIGI PC Client.
