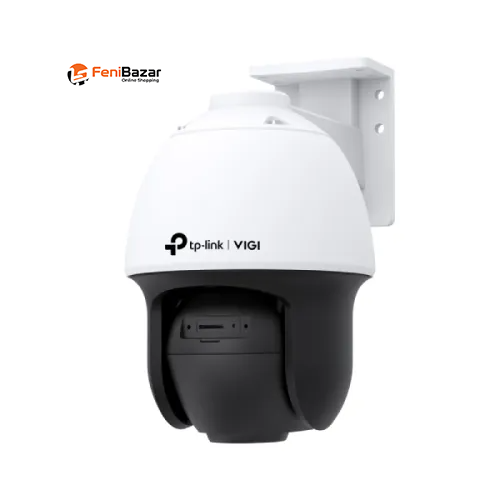

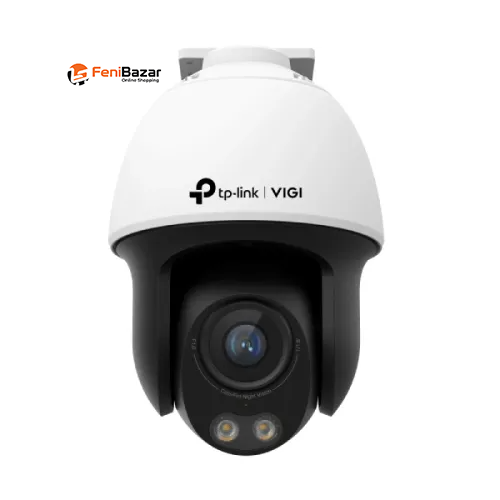

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ IP Camera

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera

Short Description:
4MP ColorPro PTZ Camera with AI Detection & 30m Night Vision

Google Description:
TP-Link VIGI C540S 4MP ColorPro PTZ Camera with ultra-low-light color night vision, AI detection, 360° coverage, two-way audio, PoE and 512GB microSD support.

Product Description:
The TP-Link VIGI C540S is a 4MP ColorPro Night Vision PTZ Camera designed for reliable 24-hour surveillance with excellent low-light color imaging. Its 1/2.7" Progressive Scan CMOS sensor and large-aperture lens provide clear and detailed video for demanding security applications.

The camera supports up to 2688 × 1520 resolution and offers flexible lens options with 2.8mm and 4mm focal lengths. The 2.8mm lens provides a wide 100° horizontal field of view, while the 4mm lens offers an 80.4° horizontal field of view for more focused monitoring.

The VIGI C540S features advanced Human & Vehicle Classification to distinguish people and vehicles from other objects, helping provide more accurate event notifications. Smart detection includes intrusion, line-crossing, region entering/exiting, object abandoned/removal and loitering detection.

For nighttime monitoring, the camera is designed around ColorPro Night Vision technology to provide improved color visibility in extremely low-light conditions. Its active defense capability can use audible warnings and white-light flashing to help deter potential intruders.

The camera also supports two-way audio with a built-in microphone and speaker, allowing real-time communication. Local recording is supported through a microSD card up to 512GB, while PoE support simplifies installation by carrying power and network data through a single Ethernet cable.

With advanced AI analytics, smart event detection, two-way audio, PoE, large-capacity local storage and ColorPro low-light surveillance, the TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera is a powerful choice for homes, offices, shops, warehouses and commercial security systems.

Key Features:
- 4MP ColorPro Night Vision PTZ Camera
- 1/2.7" Progressive Scan CMOS Sensor
- Maximum Resolution: 2688 × 1520
- 2.8mm / 4mm Fixed Focal Lens Options
- 2.8mm FOV: 100° Horizontal
- 4mm FOV: 80.4° Horizontal
- Human & Vehicle Classification
- Intrusion & Line-Crossing Detection
- Region Entering/Exiting Detection
- Object Abandoned/Removal Detection
- Loitering Detection
- Smart Frame & People/Vehicle Detection
- Two-Way Audio
- Built-in Microphone & Speaker
- Active Defense with Audible Warning & White Light Flashing
- MicroSD Support up to 512GB
- H.265+/H.265/H.264+/H.264 Compression
- PoE 802.3af/at
- HTTPS Encryption & IP Address Filtering
- 1-Year Warranty

Specification:
Image Sensor: 1/2.7” Progressive Scan CMOS
Maximum Resolution: 2688 × 1520
Lens Type: Fixed Focal Lens
Focal Length: 2.8mm / 4mm
Aperture: F1.6
2.8mm FOV: Horizontal 100°, Vertical 54°, Diagonal 118°
4mm FOV: Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7°
DORI – 2.8mm: Detect 64m, Observe 27m, Recognize 13m, Identify 6m
DORI – 4mm: Detect 80m, Observe 33m, Recognize 16m, Identify 8m
Main Stream Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Video Compression: H.265+/H.265/H.264+/H.264
Bit Rate Control: CBR, VBR
Main Stream Bit Rate: 256 Kbps–6 Mbps
Sub-Stream Bit Rate: 64 Kbps–512 Kbps
Smart Detection: Human & Vehicle Classification, Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering
Basic Detection: Motion, Video Tampering, Illegal Login, Scene Change
Audio: Two-Way Audio
Microphone: Built-in
Speaker: Built-in
Storage: MicroSD up to 512GB
Network Interface: 1 × RJ45 10/100M Self-Adaptive Ethernet Port
PoE: 802.3af/at, Class 0
Power Supply: 12V DC ±5%, Max. 10.5W
PoE Power Consumption: Max. 11.5W
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Dimension: 74 × 184 × 74 mm
Weight: 0.525 Kg
Warranty: 1 Year
