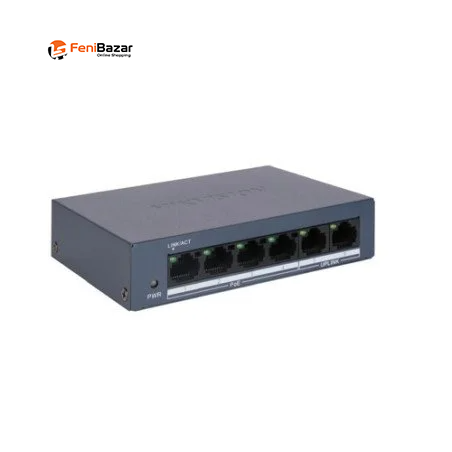

4-Port PoE Unmanaged Switch with 2 Uplink Ports, 802.3af/at & 1.2Gbps Switching
The 4-Port PoE Unmanaged Switch is a compact Layer-2 network switch designed for IP camera and network device installations. It features 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 uplink ports, providing a total of 6 Ethernet ports for connecting PoE-powered devices and network equipment.
Supporting IEEE 802.3af and IEEE 802.3at PoE standards, the switch can provide PoE connectivity to compatible network devices through Ethernet cabling. Its 1.2Gbps switching capacity and 0.89 Mpps packet forwarding rate provide efficient data handling for supported Fast Ethernet connections.
The switch provides:
4 × 10/100 Mbps PoE RJ45 ports
2 × 10/100 Mbps RJ45 uplink ports
The four PoE ports are designed for connecting compatible PoE devices, while the two uplink ports provide network connectivity to other network equipment.
The switch supports both IEEE 802.3af and IEEE 802.3at PoE standards, making it compatible with devices that operate according to these PoE standards.
The provided specification does not state the maximum PoE budget or per-port PoE output, so no unsupported PoE power figure has been added.
With a 1.2Gbps switching capacity and 0.89 Mpps packet forwarding rate, the switch is designed to efficiently handle network traffic across its Ethernet ports.
It supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x network standards.
This is an unmanaged Layer-2 switch, providing a simple plug-and-play networking solution without requiring complex configuration.
Its switching functions include:
Store-and-forward switching
Auto MDI/MDIX
Auto MAC learning and aging
The switch provides a 2K-entry MAC address table for network device address management.
The switch features a fanless design, helping maintain a compact form factor without a cooling fan.
Its dimensions are only 121.10 × 27.60 × 83.10 mm, with a weight of approximately 0.19 kg, making it suitable for space-conscious network installations.
The switch provides 2kV surge protection, helping improve protection against electrical surges in compatible network installations.
It operates in temperatures from 0°C to 40°C and supports 5% to 95% non-condensing humidity.
The switch uses a 48V DC, 1.04A input. The specification also lists approximately 50W power consumption as indicative total heat output.
Unmanaged Layer-2 PoE Switch
4 × 10/100 Mbps PoE RJ45 ports
2 × 10/100 Mbps RJ45 uplink ports
IEEE 802.3af & IEEE 802.3at PoE support
1.2Gbps switching capacity
0.89 Mpps packet forwarding rate
IEEE 802.3 / 802.3u / 802.3x standards
2K MAC address table
Store-and-forward switching
Auto MDI/MDIX
Auto MAC learning & aging
Fanless design
2kV surge protection
48V DC, 1.04A input
Compact 121.10 × 27.60 × 83.10 mm design
0.19 kg lightweight body
Operating temperature: 0°C to 40°C
Humidity: 5% to 95%, non-condensing
CE-RoHS, WEEE & REACH compliance
01 Year Warranty
| Switch Specification | Details |
|---|---|
| Type | Unmanaged PoE Switch (Layer-2) |
| PoE Ports | 4 × 10/100 Mbps PoE RJ45 |
| Uplink Ports | 2 × 10/100 Mbps RJ45 |
| PoE Standard | IEEE 802.3af & IEEE 802.3at |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| MAC Address Table | 2K entries |
| Transmission Method | Store-and-forward switching |
| MDI/MDIX | Auto MDI/MDIX |
| MAC Function | Auto MAC learning & aging |
| Surge Protection | 2kV |
| Fan | Fanless |
| Power Input | 48V DC, 1.04A |
| Power Consumption / Heat Output | Approx. 50W indicative total heat output |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to 85°C (–40°F to 185°F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Dimensions | 121.10 × 27.60 × 83.10 mm |
| Weight | 0.19 kg (0.42 lb) |
| Certifications | CE-RoHS, WEEE, REACH |
| Warranty | 01 Year |
This 4-Port PoE Unmanaged Switch is suitable for:
IP camera installations
PoE network device connections
Small network systems
CCTV networking
Office network installations
Retail and commercial network setups
Network expansion with PoE connectivity
Overall, this 4-Port PoE Unmanaged Switch with 2 Uplink Ports provides a compact and simple Layer-2 networking solution with IEEE 802.3af/at PoE support, 1.2Gbps switching capacity, 2kV surge protection and fanless operation.
