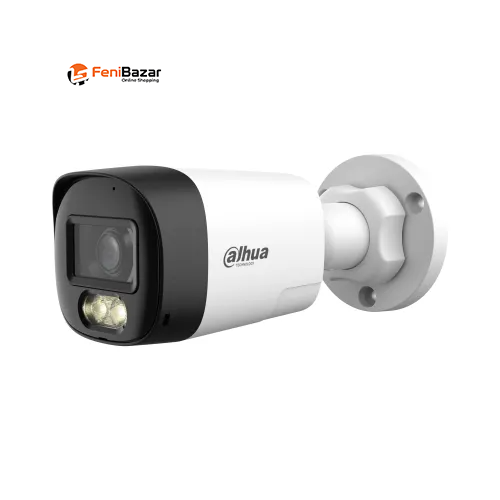

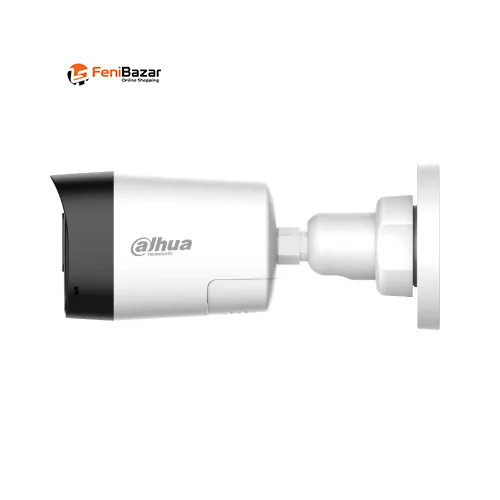

5MP HDCVI Bullet Camera with 30m IR, 3D NR & IP67 Protection
2880×1620 Resolution, 2.8mm/3.6mm Fixed Lens & CVI/TVI/AHD/CVBS Support
Two-Way Talk, WDR, Auto/Manual IR Control & 12V DC Power
| General | |
| Casing | Plastic |
|---|---|
| Dimensions | 161.6 × 70.0 × 69.7mm |
| Weight | 0.27kg |
| Pan | 0°–360° |
| Tilt | 0°–90° |
| Rotation | 0°–360° |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +60°C |
| Storage Humidity | <95% RH, non-condensing |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 7.3W (12V DC, WLED On) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100,000s; NTSC: 1/30s–1/100,000s |
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lux @ F2.0 (B/W, 30 IRE); 0 lux (Illuminator On) |
| S/N Ratio | >65dB |
| IR Distance | 30m |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed-Focal |
| Mount Type | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F2.0 |
| Angle of View | 2.8mm: H111.3° / V60.8° / D134.2°; 3.6mm: H89° / V48.2° / D109.1° |
| Close Focus Distance | 2.8mm: 0.5m; 3.6mm: 0.7m |
| Video | |
| Resolution | 5MP (2880 × 1620); 4MP (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576 / 960 × 480); TVI 5MP 16:9 (2960 × 1665) |
| Frame Rate | PAL: 5MP @ 25fps / 12.5fps; 4MP @ 25fps; 1080p @ 25fps; 5MP 16:9 @ 20fps; NTSC: 5MP @ 25fps / 20fps / 10fps; 4MP @ 30fps; 1080p @ 30fps; 5MP 16:9 @ 20fps |
| Video Output | CVI / TVI / AHD / CVBS via 1 × BNC port |
| Signal Switching | DIP Switch |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR |
| Gain Control | Manual / Auto |
| Noise Reduction | 3D NR |
| Interface | |
| Audio Interface | Two-Way Talk |
| Special Features | |
| Ingress Protection | IP67 |
| Warranty | |
| Warranty | 1 Year |
This 5MP fixed-focal camera features a CMOS image sensor and progressive scanning to deliver high-resolution surveillance video. It supports up to 5MP resolution at 2880 × 1620, along with 4MP, 1080p and 960H video modes for flexible recording and monitoring.
The camera uses an M12 fixed-focal lens available in 2.8mm and 3.6mm options. The 2.8mm lens provides a 111.3° horizontal, 60.8° vertical and 134.2° diagonal field of view, while the 3.6mm lens provides 89° horizontal, 48.2° vertical and 109.1° diagonal coverage.
For low-light surveillance, it supports up to 30m IR illumination with automatic or manual IR control and two IR LEDs. The camera also features Auto ICR, Color and B/W day/night modes, along with BLC, HLC, WDR and 3D noise reduction for improved image quality in different lighting conditions.
Video output is available through a single BNC port with CVI, TVI, AHD and CVBS formats selectable using a DIP switch. The camera supports two-way talk and operates on 12V DC ±30%. Its IP67 protection, plastic casing and -40°C to +60°C operating temperature range provide reliable operation for suitable surveillance installations. It comes with a 1-year warranty.
